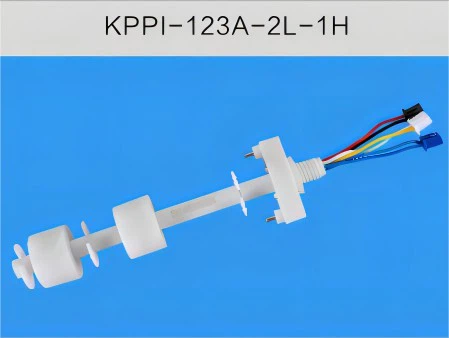

Yas Float Hloov

Xa kev nug

Hauj lwm lawm

Khoom taw qhia

Plastic ntab hloov tshwj xeeb yog siv rau kev tshawb nrhiav cov kua theem, qhov taw qhia qhov taw qhia kev sib kis thiab cov kua theem tswb rau ntau yam nruab nrab thiab me me atmospheric siab thiab siab thiab siab ua kua tso tsheb hlau luam. Nws tuaj yeem siv rau hauv ntau qhov chaw muaj kev phom sij xws li huv, tshuaj lom, nruab nrab corrosive thiab roj tawg. Muaj ntau hom kev teeb tsa, haum rau txhua hom ntim.

Khoom feature

Cov khoom siv ntawm cov yas ntab hloov yog tsis muaj tshuaj lom, qib zaub mov thiab tsim nyog rau cov khoom noj khoom haus hauv dej, khoom siv hauv tsev thiab lwm yam khoom. PP + NBR floater yog kub tsis kam, tsis muaj kev faib ua feem, thiab haum rau roj nruab nrab. PVDF ua haujlwm nrog 120-degrees kub, kua qaub thiab alkali tsis kam, compact qauv thiab ruaj khov. Teflon muaj lub neej ntev, kev ntseeg tau zoo, muaj peev xwm muaj zog, thiab siv ntau yam. Yas ntab hloov yog siv nyob rau hauv feem ntau cov roj-media thiab muaj kev ruaj ntseg zoo nyob rau hauv dej, kub tsis kam, siv nyob rau hauv dej thiab roj-media, tsis muaj zog-acid thiab alkali ib puag ncig.

Kub: PVDF qhov kub siab tshaj plaws yog 100 degree, qhov kub siab tshaj ntawm kev hloov yog 80 degree.

Khoom specification

Khoom siv	PP yas
Kev sib txuas loj	M10*1.5
Style	Nquag qhib, ntsug mounted, peb kuj tuaj yeem ua kev cai kaw
Hu rau Capacity	AC220v/1A; DC 110V / 0.5A
Siv nruab nrab	Dej los yog kua uas tsis muaj kev puas tsuaj rau lub ntab, 0- 60 degree 0- 60 degree
Rated voltage	Tsawg dua lossis sib npaug rau DC24V (rau kev siv hluav taws xob siab, nkag mus rau nruab nrab relay) Tsawg dua lossis sib npaug rau DC24V
Hloov lub sijhawm teb	0.2ms
Kab specification thiab nruab kev taw qhia	tuaj yeem Customized
Txoj kev teeb tsa	Vertical nkag 35mm
Cov duab	Kuv Zoo li
Ua haujlwm kub	-30-90 degree lossis -30-105 degree
Ntsuas qhov ntev	32-80 hli
Txoj kab uas hla ntawm ntab pob	20-29 hli
Max tiv tauj ntsuas	3w. 10w. 50w. 70w
Max hloov voltage	DC24V; DC 100V; AV 110V; AV 220 V
Max hloov tam sim no	0.25A. 0.5A. 0.7A. 1A

Muaj nuj nqi

Plastic ntab hloov, siv rau qib tswj thiab tswb ntawm txhua yam kev lag luam xws li hluav taws xob, hluav taws xob hluav taws xob, tshuaj lom neeg, kev kho dej, dej thiab dej.
